Pro WiFi Shield Kit Tutorial

Product Description:

wifi1.jpg wifi11.jpg

This is an unassembled kit and requires basic soldering. This is designed for use with the Digispark development board, which is not included.

Parts:

Part Quantity Identification
Pro WiFi PCB1
USR-WIFI232-T Module 1
MCP1700-3302E 3.3V LDO Regulator 1
0.1uf Ceramic Capacitor 1
1uf Electrolyitic Capacitor 1
WiFi Antenna 1
1/6 - 1/4W 4.7K Resistor 1 Yellow - Violet - Red
1/6 - 1/4W 10K Resistor 1 Brown - Black - Orange
1x40pin male 0.1“ pitch header 25 pins worth

Resistor Values: For more information on how to identify the value of the resistors we recommend these sites: A nice simple resistor calculator: http://www.ealnet.com/m-eal/resistor/resistor.htm A comprehensive article on identification: http://www.diyaudioandvideo.com/Electronics/Color/

Soldering: If you are new to soldering we recommend the following tutorials: Soldering Basics (http://www.sparkfun.com/tutorials/106) and Soldering Crash Course from the folks at Sparkfun (http://www.sparkfun.com/tutorials/354). How to solder from the Curious Inventor: http://store.curiousinventor.com/guides/How_to_Solder

Adafruit has this excellent guide that starts with the tools needed and then shows detailed pictures, including some of the common problems that beginners experience (http://learn.adafruit.com/adafruit-guide-excellent-soldering)

We assume for these assembly instructions that you know the basics of thru-hole soldering. If you don't check out the links above, these boards are very easy to solder - we promise!

Assembly:

NOTE: Before you start: If you have a multimeter check for shorts between the GND pin hole and the other pin holes - if you find any please send us an email at support at digistump dot com and we will replace the board.

Check the contents of your kit and ensure you have all of the parts listed.


Insert the 4.7K and 10K resistors into the spots labeled for them. Solder the leads on the bottom of the board and clip off any excess.

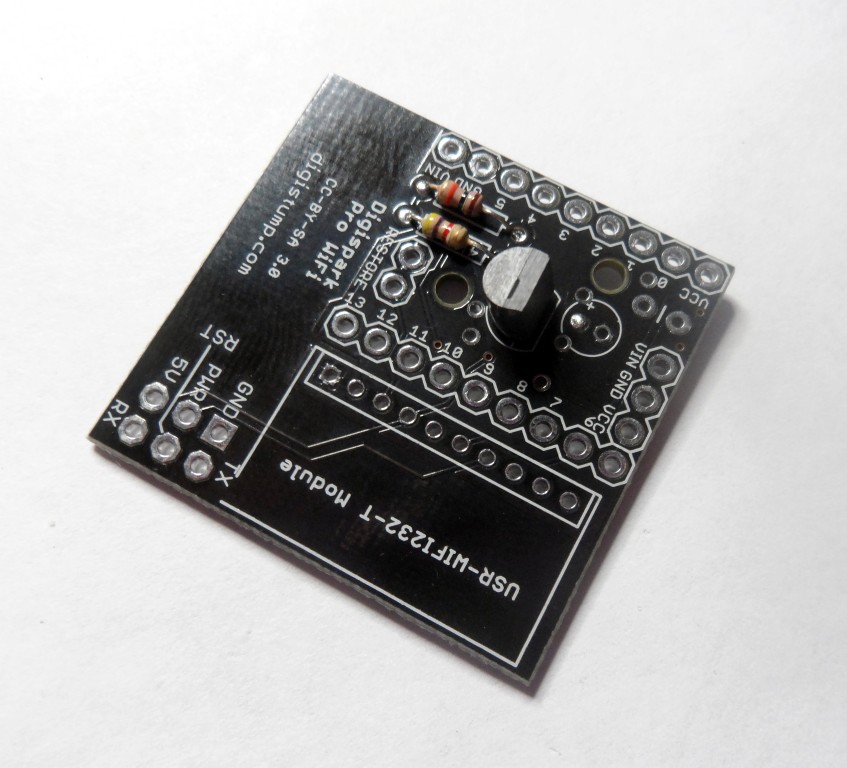

Insert the 3.3v regulator, matching it with the outline on the board. Solder the leads on the bottom of the board and clip off any excess.


Insert the 10uf Capacitor - ensuring the lead on the side of the capacitor that is labeled with a grey stripe and minus signs is going into the hole that DOES NOT have the plus sign next to it. Solder the leads on the bottom of the board and clip off any excess.

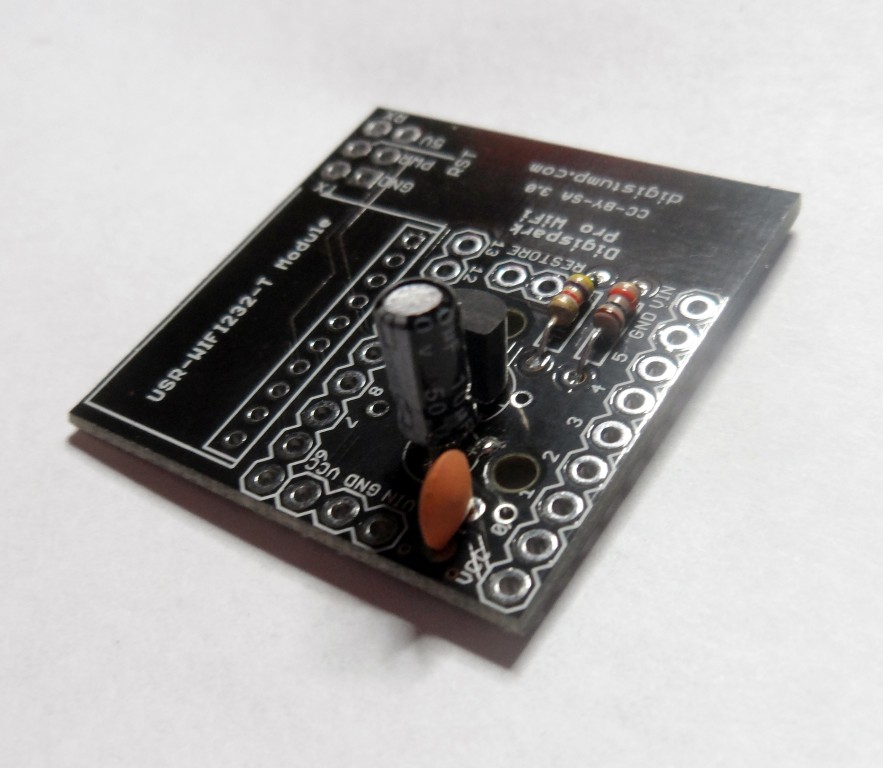

Insert the 0.1uf capacitor as shown (lead orientation doesn't matter). Solder the leads on the bottom of the board and clip off any excess.

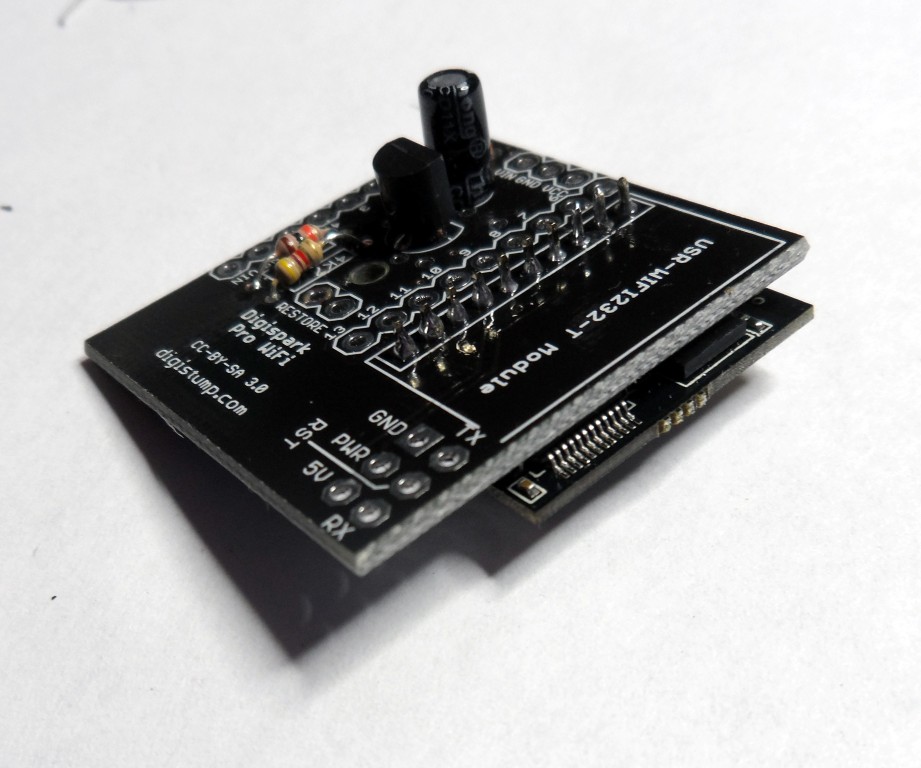

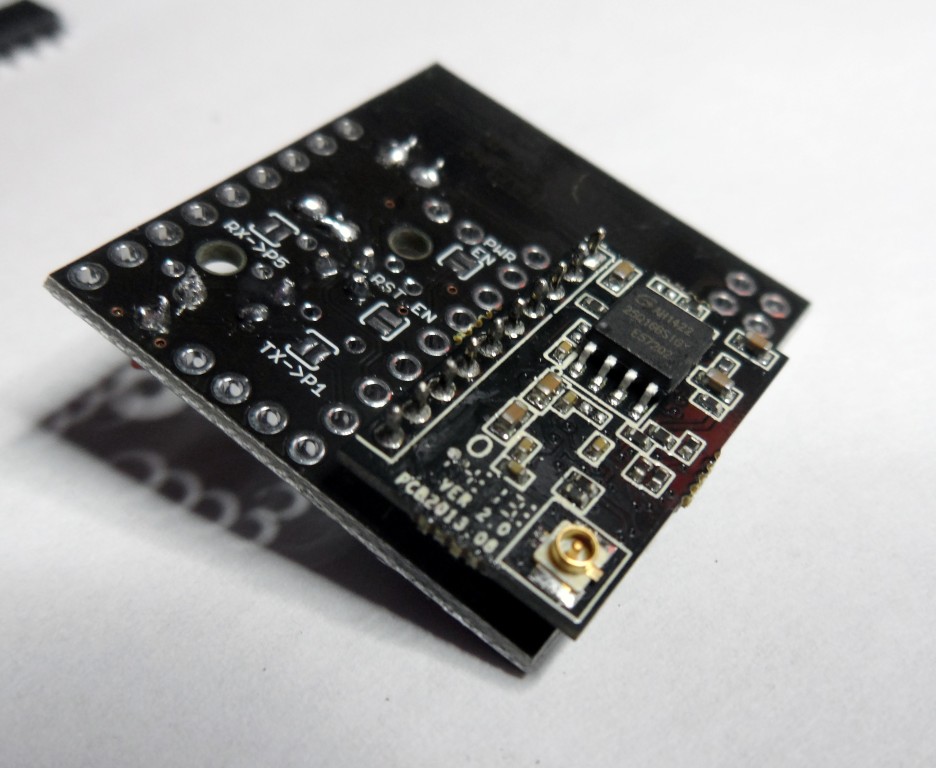

Insert the WiFi module as shown - into the bottom of the PCB (NOT THE TOP!) - solder the leads on the top of the board.

wifi6.jpg wifi7.jpg

Cut two lengths of male headers each 9 pins long and one 3 pins long. Insert into corresponding positions (on the bottom of the board) and solder each pin.

Tip: Inserting the headers into a breadboard and then placing the board on top can make this process easier.

Note: If you are using stackable headers, use them here instead of the standard male headers.

wifi8.jpg wifi9.jpg

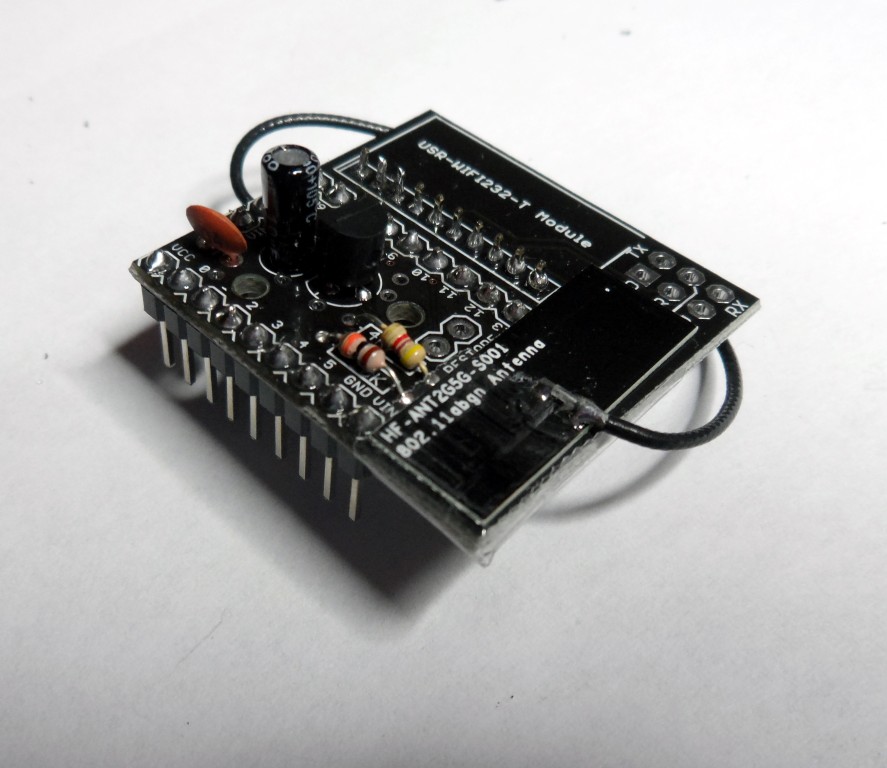

Plug antenna into WiFi module. Optionally affix antenna to board as shown - using tape, hot glue, or similar.

wifi10.jpg wifi11.jpg

WiFi Module Setup:

Programming:

Several Examples can be found under Files→Examples→Digispark_Examples→ in the newest Digistump IDE releases 1.5.8A and higher

NOTE: You must follow the setup guides above for the Client or Server setup, before using the examples.
