Motor Driver Shield PCB
$1.95 USD
Availabity: In stock
Qty:

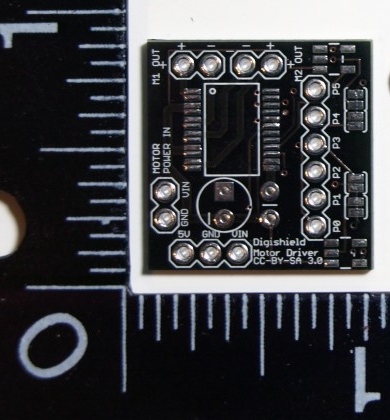

Motor Driver Shield PCB
This is the bare PCB only, and does not include parts or headers. Please see the "Digispark Kits" section for complete kits.

The Motor Shield Kit allows you to connect two DC motors to the Digispark development board. The Motor Shield connects the TB6612FNG Dual Motor Driver to the Digispark allowing the Digispark to control up to two DC motors, up to 15VDC, 1.2A per channel (3.2A peak). The Motor Shield kit uses two inverters to allow each motor attached to the TB6612FNG to be controlled with only two i/o lines from the Digispark, four total.
Hardware License:
Instructions, tutorials, etc:
Sources:
Note: Schematics, source files, software, and datasheets are provided rovided "as is", without warranty of any kind, express or implied, including but not limited to the warranties of merchantability, fitness for a particular purpose and noninfringement. in no event shall the authors or copyright holders be liable for any claim, damages or other liability, whether in an action of contract, tort or otherwise, arising from, out of or in connection with the product or the use or other dealings in these products.
