Surface Mount Prototype Kit
$2.95 USD
Availabity: In stock
Qty:

Surface Mount Prototype Kit

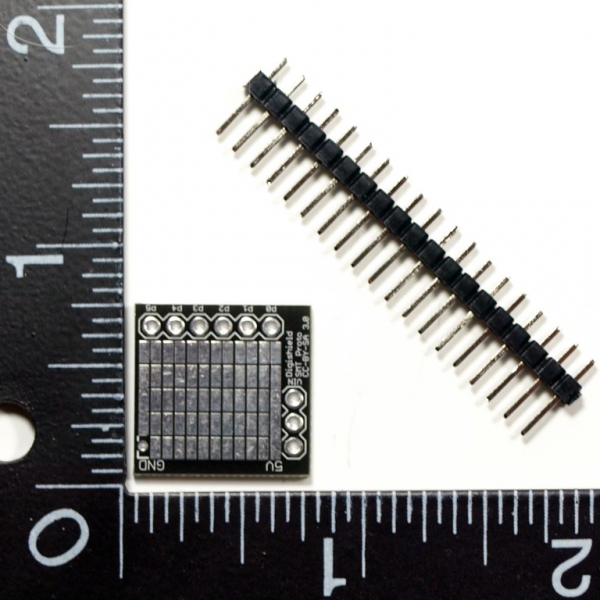

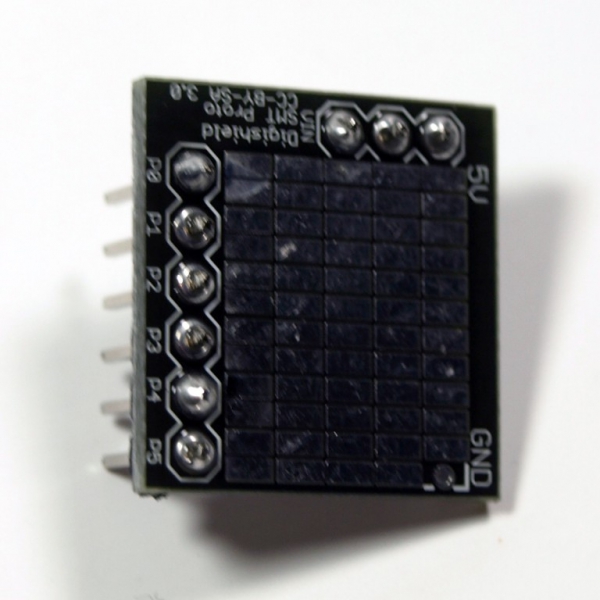

The Surface Mount Shield Kit breaks out the connections on the Digispark development board and provides a small surface mount soldering area for building custom circuits. The SMT pads on this board are 1.272.54 (50x100mil).

This is an unassembled kit and requires basic soldering. Use of it requires surface mount soldering. This is designed for use with the Digispark development board, which is not included.
Hardware License:
Instructions, tutorials, etc:
Sources:
Note: Schematics, source files, software, and datasheets are provided rovided "as is", without warranty of any kind, express or implied, including but not limited to the warranties of merchantability, fitness for a particular purpose and noninfringement. in no event shall the authors or copyright holders be liable for any claim, damages or other liability, whether in an action of contract, tort or otherwise, arising from, out of or in connection with the product or the use or other dealings in these products.
